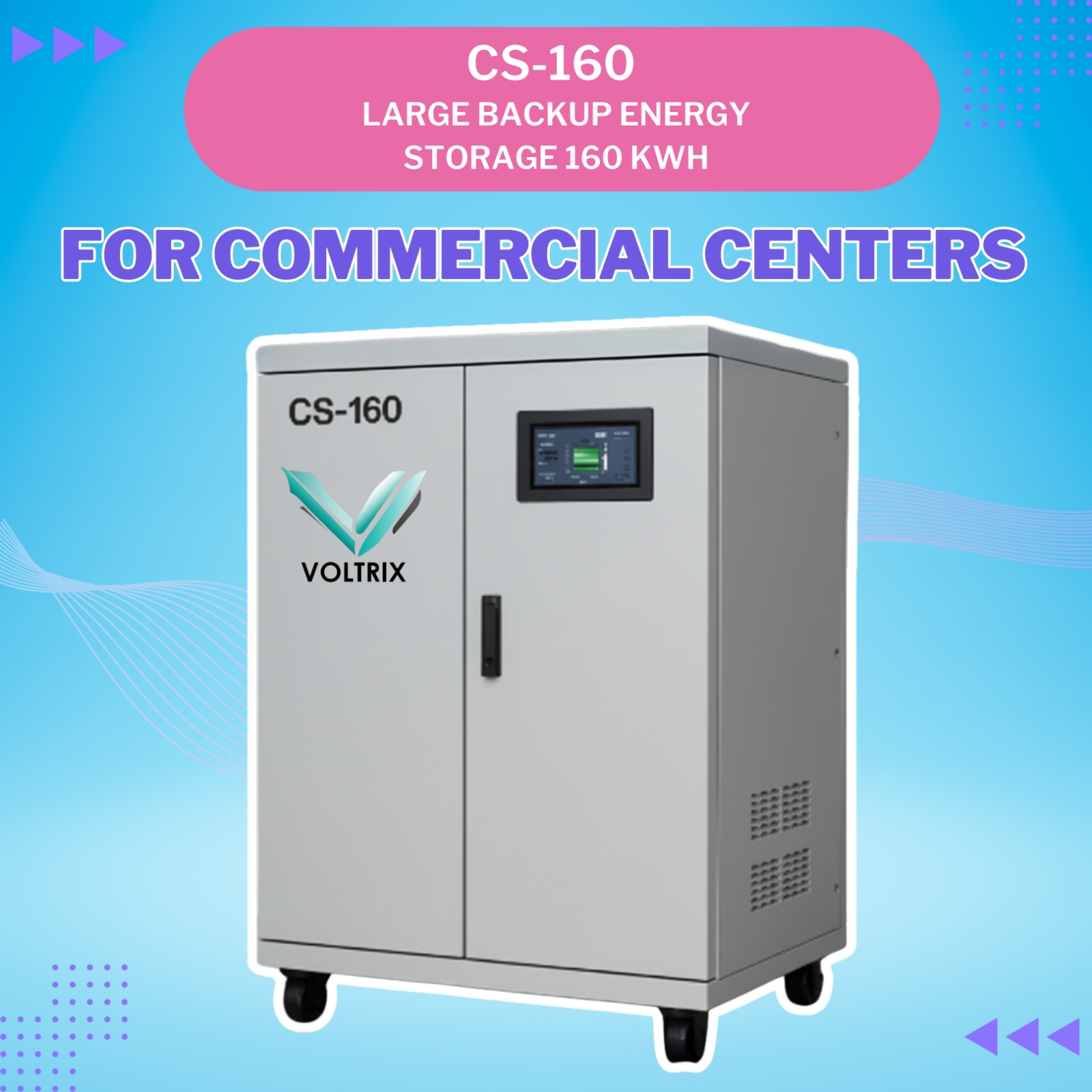

CS-160
For Commercial Centers requiring Large Backup Energy Storage 160 KWh
$7,000,000.00
0 (0 reviews)
Warranty: 10 years
Category: Commercial and Industrial Energy Storage
Description: CS-160 � 160 kWh | 51.2V | 1200A Max Discharge Built for heavy-duty performance and scalability, the CS-160 delivers a robust 160 kWh capacity, making it a reliable solution for demanding commercial and industrial applications. Engineered with advanced lithium technology, it ensures consistent power delivery, long-term safety, and operational stability. With its rack-mounted, space-efficient design, the CS-160 integrates seamlessly into modern energy infrastructures. Whether for backup power, renewable integration, or high-demand facilities, this system is tailored to perform when reliability matters most.
Description: CS-160 � 160 kWh | 51.2V | 1200A Max Discharge Built for heavy-duty performance and scalability, the CS-160 delivers a robust 160 kWh capacity, making it a reliable solution for demanding commercial and industrial applications. Engineered with advanced lithium technology, it ensures consistent power delivery, long-term safety, and operational stability. With its rack-mounted, space-efficient design, the CS-160 integrates seamlessly into modern energy infrastructures. Whether for backup power, renewable integration, or high-demand facilities, this system is tailored to perform when reliability matters most.
Product Specifications
| Parameter | Specification |
|---|---|
| Configuration | 10 � 16 kWh modules (16S, 314 Ah,51.2 V each); 10 modules in series |
| Cell Chemistry | LiFePO?, 3.2 V, 314 Ah |
| Nominal Voltage (pack) | 512 Vdc |
| Nominal Capacity | 314 Ah |
| Discharge Current (operational) | 157 A (0.5C) |
| Pack Voltage Limits | Vmax: 576 V, Vmin: 416 V |
| Voltage Limits (per-cell) | Vmax 3.60 V / Vmin 2.60 V |
| Cooling System | Air conditioner 490 W consumption, 1.5 kW cooling @35�C/35�C |
| Dimensions (H � L � W mm) | 2200 � 1950 � 620 |
| Certifications & Standards | UL-9540 / UL-9540A, NFPA-855, NFPA-2001, IEC, CE, UKCA � VERIFIED |
| Control & Automation | PLC + HMI integration controlling peak loads, cooling, fire suppression, and door opening cut-off |
| Fire Detection & Suppression (Optional) | Automatic suppression, smoke detectors, UV/3-IR detector; sequenced via PLC |
| Max Discharge Current | 200 A |
