BESS-232 KWh
0 (0 reviews)
Technical Overview
Industrial Energy Storage 232 KWH BESS-232
Request for Quotation
Out of Stock

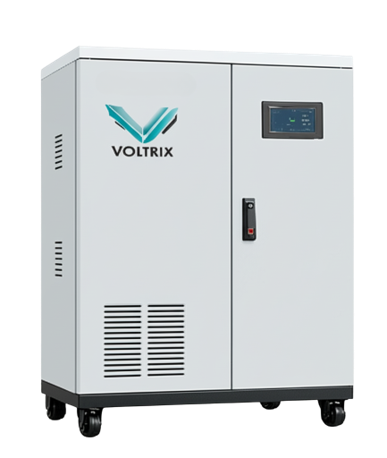

The Voltrix BESS-232 is a state-of-the-art Battery Energy Storage System engineered for heavy-duty industrial applications, offering a massive 232 kWh capacity at 820 Volts. Designed for factories, power-hungry equipment, and energy-intensive sites, it comes fully integrated with advanced systems like SCADA and EMS for safety, control, and performance.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | CS-232 |
| Nominal Energy | 232 kWh |
| Configuration | 5 × 46.59 kWh modules |
| Cell Chemistry | LiFePO₄, 3.2 V, 314 Ah |
| Nominal Voltage (pack) | 741.8 Vdc |
| Discharge Current (operational) | 157 A (0.5C) |
| Max Discharge Current | 200 A |
| System Protection | IP54 |
| Voltage Limits | Vmax : 846.8 V Vmin: 580 V |
| Life Cycle | 10000 cycles |
| Cooling System | Electrical compartment: intelligent air cooling; battery compartment: air conditioning; or liquid cooling, optional |
| Maximum operating altitude | ＜4000m |
| Communication interface | RS485、CAN、LAN |
| Certifications & Standards | UL-9540 / UL-9540A, NFPA-855, NFPA-2001, IEC, CE, UKCA — VERIFIED |
| Warranty | 10 Years |
